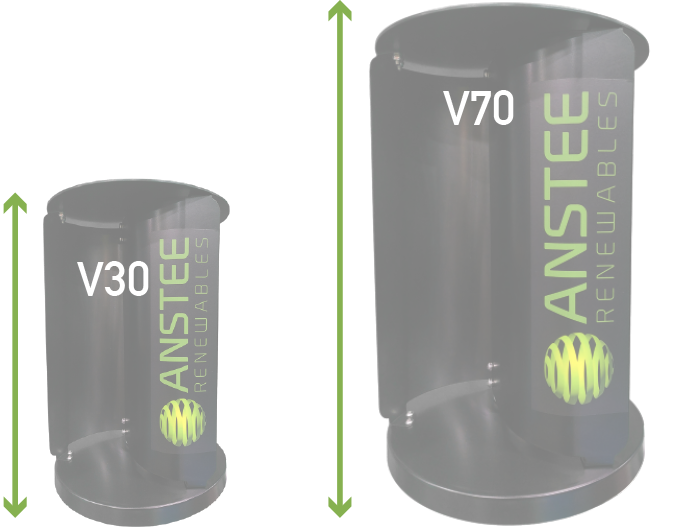

Forgen V30
£595 exc vat
Rotor Diameter: 210mm
Vane Height: 285mm
Rating Power: 20Watts@21m/s
Weight: 8 Kg
Forgen V70
£895 exc vat
Rotor Diameter: 320mm
Vane Height: 428mm
Rating Power: 45Watts@21m/s
Weight: 13 Kg
(Prices exclude VAT)
Full Specification
Output Voltage: Suitable for 12/24Vdc
Start-up Wind Speed: 2m/s (3.88knots)
Generator: Three Phase Permanent Magnet
Noise Level: Less than 5dB, from 5m
Coating: All exposed parts enamelled aluminium Centre shaft cold anodised
Bearings: Fully Sealed
Temperature Range: Normal Temperature -20 to 50 DegC
Low Temperature -50 to 50 DegC
Cable: 10m of 3-core wire (options available)

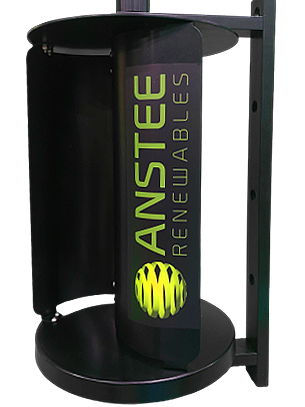

Mounting Options: Side, Wedge, Pole and Rail
Installation: Easy and Simple
Warranty: 2 Years
Special Features:
- Can handle extreme weather conditions of high wind, rain, snow, waves.
- Safe and silent in operation
- Non blade design for user safety
- No maintenance required
- Corrosion resistant components
- Electrical circuit fully protected against overload
Special Features
- Dedicated trickle chargers for single battery and battery bank installations up to 400Ah
- Used globally in various applications, including government scientific research institutions, sailing boats, and commercial setups requiring small-scale remote power
- Better performance in disturbed flow-fields compared to small horizontal-axis wind turbines (HAWT)
- Ideal for distributed generation devices in urban environments
- Excellent performance in extreme environments such as the Arctic, Antarctic, and offshore marine applications
- Most robust vertical axis machine on the market
- Turbine is self-regulating in extreme wind conditions
- Internal electronic circuitry protected against overload
- Easy start-up after overnight mooring for sailing craft
- Ideal for parked caravans, electric fence units, sea buoys, and remotely situated electronic equipment
- Virtually maintenance-free with encapsulated electrical components
100w - 400w 12/24v
Ex-stock UK
Warranty 2 years
Start-up wind speed 2.0m/s
Survival wind speed 45m/s
Blades number 3 or 5
Blade material Reinforced glass fibre
Casing - Finish Cast aluminium – Enamel painted
Noise level Less than 5dB, from 5m
Temperature Range -40 to 80 DegC
Ingress Protection IP65
£ - Please enquire
